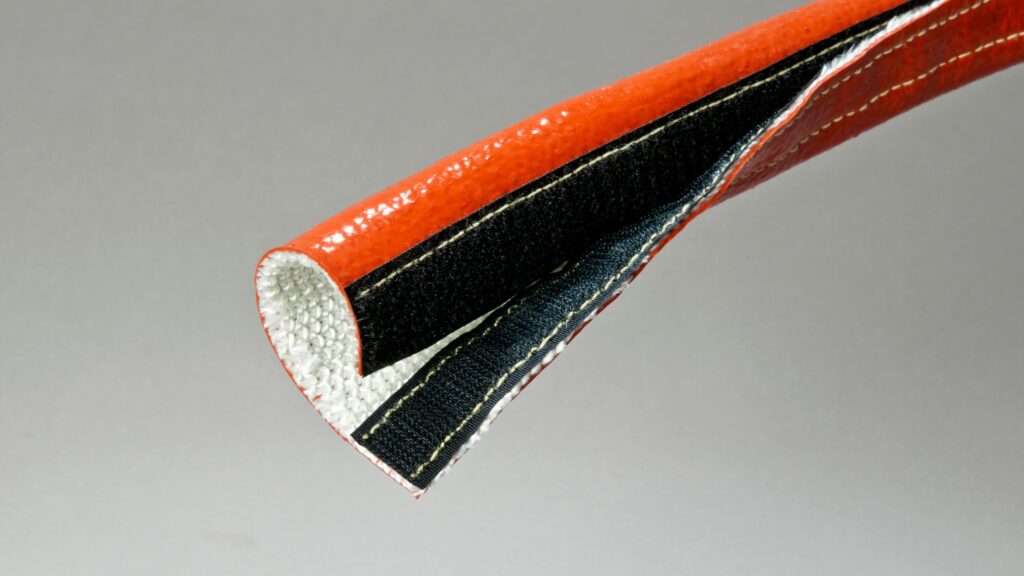

Pyrotex HLC Firesleeve provides the time-tested value of standard, seamless Pyrotex SG Firesleeve in an easy-to-install sleeve solution which can be installed without the need to disconnect existing lines.
Pyrotex HLC is fabricated from either Pyrotex Industrial Knit or Pyrotex Aerospace-grade Braid Firesleeve, expertly stitched with a high-temperature industrial Hook & Loop Closure system. Pyrotex HLC keeps your processes running, and allows for increased uptime and productivity by eliminating the need to disconnect lines in order to resleeve. Bundle multiple lines together with Pyrotex HLC to provide simultaneous protection with one sleeve and to route hoses, wires, and cables away from hazards.
Extend the service life of assemblies and reduce the likelihood of personnel injury with Pyrotex HLC. Resistant to molten splash, high temperatures, direct flame, and common industrial fluids, Pyrotex HLC Firesleeve is an ideal protective sleeve solution for many applications and industries.
| Continuous: | 500ºF | 260ºC |
| Short term: | 2200ºF | 1200ºC |
| Highly texturized E-Glass fiber | |
| Densely braided insulating substrate | |
| High-temperature Silicone polymer | |
| Flame-retardant hook & loop closure |
| Simple, retrofit | |
| Atlantex’s proven performance in an easy-to-implement thermal solution | |
| Increase uptime & protect personnel | |
| Self-extinguishing thick-walled insulating sleeve for excellent thermal protection |
| Sheds molten metal splash instantly and resists direct flame impingement |
| Lightweight and highly flexible composite protective sleeve with exceptional elasticity |
| Will not melt, burn, support combustion, or emit toxic smoke |
| Resistant to hydraulic fluids, fuels, lubricating oil, and water |
| Extends service life of assemblies and provides personnel protection |
| Pyrotex HLC Braid is available in diameters from 3/4″ (19 mm) to 5″(127 mm) |
| Pyrotex HLC Knit is available in diameters from 3/4″ (19 mm) to 4″ (102 mm) |
| Fabricate Pyrotex SG Blanket for sleeving larger than 5″ (127 mm) |
| Available in standard RIO, other colors are available upon request |
| Red Iron Oxide (RIO) | |
| Aluminized | |
| Black | |
| Yellow | |
| Blue | |
| Red | |
| Green |
| 3/4″ | 19 mm | ||
| 1″ | 25 mm | ||
| 1-1/4″ | 32 mm | ||
| 1-1/2″ | 38 mm | ||
| 1-3/4″ | 44 mm | ||
| 2″ | 51 mm | ||
| 2-1/4″ | 57 mm | ||
| 2-1/2″ | 64 mm | ||
| 2-3/4″ | 70 mm | ||
| 3″ | 76 mm | ||
| 3-1/2″ | 89 mm | ||
| 4″ | 102 mm | ||
| 3/4″ | 19 mm | ||
| 1″ | 25 mm | ||
| 1-1/4″ | 32 mm | ||
| 1-1/2″ | 38 mm | ||
| 1-3/4″ | 44 mm | ||
| 2″ | 51 mm | ||
| 2-1/4″ | 57 mm | ||
| 2-1/2″ | 64 mm | ||
| 2-3/4″ | 70 mm | ||
| 3″ | 76 mm | ||
| 3-1/2″ | 89 mm | ||
| 4″ | 102 mm | ||
